|Product Name:||China Capsule Filling Machine Supplier||CE:||Yes|
|Capsule Size:||000-4#||Usage:||For Filling Liquid Oil Into The Empty Hard Capsule|
|Capsule Filling Rate:||>99%||Auto Reject:||Yes|
capsule filling equipment,
capsule filler machine

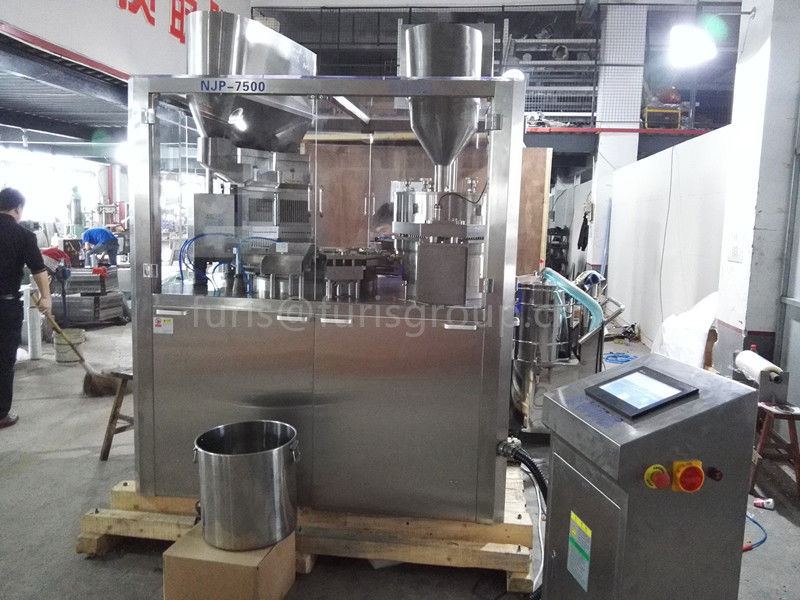

China Capsule Filling Machine Supplier With Automatic Loading Powder and Empty Capsule Device
The machine is designed and further improved on the base of original full automatic capsule filling machine from both home and aboard. With high technology and exclusive performance, it has reached international leading level.
It is an ideal equipment for capsule and medicine in pharmaceutical industry which is in full compliance with GMP requirements.
Capsule Part: Loading the empty capsule into capsule hopper, the empty
capsule then get into capsule sowing plate, automatic make U turn, divide the top and body of capsule
when pass by vacuum, automatic filling while come into dosage tray, it has automatic reject function if the capsule is flat or its top and body can not be divided. After that, automatic locking and output the final products.
Powder or pellets part: Loading the medicine into medicine hopper, then the medicine automatic come down, (the machine stop automatically while no medicine), dosage tray going filling for five times, make the medicine save into medicine pole. Finally, medicine is filled into empty capsule.
Running very stable,high good quality
Control system be provided with OPC server
Control system be realized with FDA CFR211 E-signature E-recording
Control system be provide with industrial Ethernet interface be connected with OPC client
High-capacity HD can be record message,meet CGMP,FDA certification
With Japan imported beeline bearings,make sure the machine long work life and precision of machine
The working station cam runs under the good lubricating condition and maintaining the inner lubrication of cam slot to a full extent,increasing the pressure pulverization oil pump,extends the operation life of the spare parts
Single movement for both upper and lower segments with two lip seal provide a much better sealing performance
Adopt the PLC and touch screen control,step-less frequency conversion motor,all parameter can be set up in the touch screen,make the operation very convenient
Three-dimensional adjustment of the dosing disk, space uniform, to ensure accurate filling, the capsules yield up to 99%
It has a protector for operation and machine,can auto pause when the machine lack of capsule or powder,insure the machine running stable,safe.
Add the mold blowing air,sucking air function,insure the mold hole without dust when fill the capsule
|Machine suitable for:||capsule Size #00 to 5|
220v/380v 50Hz three phase
(it can be changed depend on your requirement)
|Quantity of mould bores:||12pcs|
