Product Details:
|
Product Name: | WF-30B All-purpose Turbine Herb Crushing Machine For Making All Kinds Of Powder | Material: | 304 Stainless Steel |
---|---|---|---|
Function: | Grinder / Crusher / Pulverizer / Mill | PLC: | Can Customize |
Touch Screen: | Can Customize | Mesh Size: | 60-120 Mesh |
Feeding Size: | 10 Mm | Machine Size: | 600*750*1450 Mm |
Machine Weight: | 450kg | ||
High Light: | powder grinder machine,powder milling equipment |

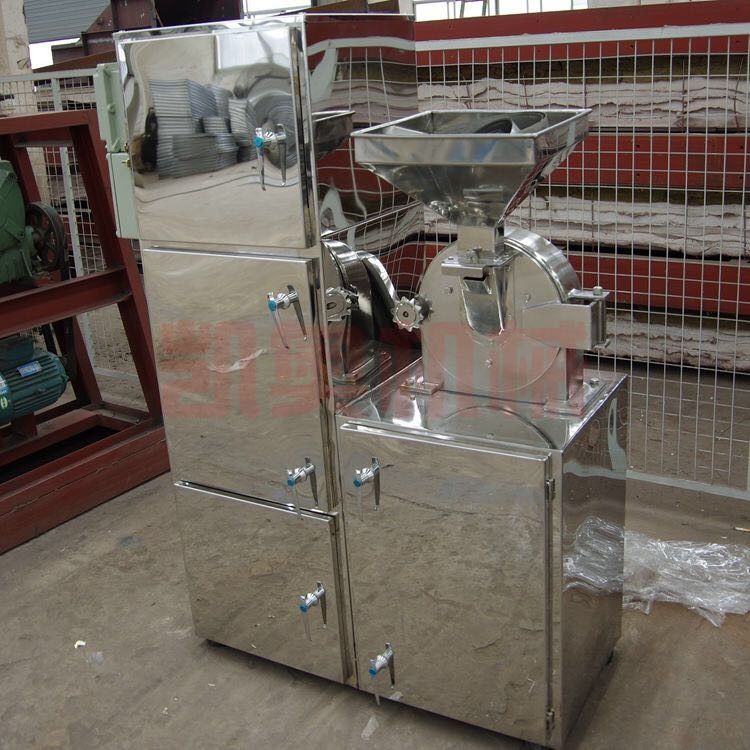

Turbine Vertical Herb Crusher 304 Stainless Steel For Making Powder
Applying:
The herb crusher is used the vertical low raw material discharging equipment, and it makes some raw materials with poor fluidity after broken can be discharged unblocked and no the phenomenon of accumulated powder.
For crush the big material such as chill,sesame,walnut,rice,mung bean,peanut,lotus seed,maize,buckwheat,etc into small granule or powder
The machine feeding speed can be adjust by valve,adopt the fluted disc,has more stronger crush ability,the crush mesh size can be adjusted by change the mesh screen
Working principle:
Its principle of work is as follows: when raw material entered into the crushing chamber, it is broken
under the impacting of movable and fixed gear disks that are rotated in high speed and then becomes the needed raw material through screen.
The machine consist of charging filler, grading wheel,crushing knives ,tooth circle ,crushing motor discharging outlet ,materials concentration case and dust absorption case. the materials goes into the crushing room from the charging filter, they are crushed bu knives rotating at high speed.
The distance between grading wheel and grading plate can be adjusted to reach the required particle size . The qualified materials are introduced from the crushing room to the cloth bag in the concentrating case .
While the unqualified materials are crushed continuously. The dusts from the cloth bag in the concentratiuong case are collectesthe dust absorption case .
The machine is desighed according to "GMP" standard. it is characteristic of simple structure, easy operation ,low noise, high capacity,The machine is made from stainless steel ,no dust will rise when working .
Features:
Its pulverizer and duster are all made of qualified stainless steel. Its inner wall of the housing is smooth and level being processed through superior technology.Therefore it can make the powder discharging more flowing and is benefit to the work of clean too. The gear disk of high speed and movable teeth are welded through special welding, it makes the teeth is durable, safety and reliable. The machine is in conformity with the requirements of GMP.Through balance test of gear disk with high speed .It is proved that even if this machine is rotated at high speed. It is stable and no vibration during the period of ordinary operation. Being adapted the interlock apparatus between gear disk with high speed and driving shaft, it is complete reliable in operation.
Model | WF-18B | WF-20B | WF-30B | WF-40B | WF-60B |
Capacity(kg/h) | 5~30 | 20~150 | 30~300 | 40~800 | 20~1200 |
Speed of principal axis(r/min) | 5200 | 4500 | 3800 | 3400 | 2600 |
Size of input granules (mm) |
<5 | <6 | <10 | <12 | <15 |
Fineness of products (Mesh) |
12-120 | 12-120 | 12-120 | 12-120 | 12-120 |
Grinding power (kw) |
2.2 | 4 | 5.5 | 11 | 22 |
Dust absorption power(kw) | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
Weight(kg) | 200 | 300 | 450 | 620 | 680 |
Overall Size (L*W*H mm) |
820*400*1350 | 1100*600*1400 | 1200*700*1450 | 1400*800*1650 | 1650*950*2100 |
We can offer you different kind grinding machine crushing machine for different purpose
Competitive advantage:
1. We have several technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Country:
USA (Distributor ),Italy distributor,Britishi(Distributor),India(Distributor)
Comany info:
We are mainly produce the pharma machine,pharma packing machine,and disposable non-woven take care product machine.Our product includes capsule filling machine,tablet press machine,powder mixing machine,powder grinding machine,tablet capsule counting machine,blister packing machine,cartoning machine,labeling machine,face mask machine,shoe cover machine,bouffant cap machine,body wamer pad machine,eye warmer pad machine,sheet bed machine,non-woven sheet folding machine,non-woven slitting machine,etc all kind of non-woven product machine.
