|Material:||304/316 Stainless Steel||Function:||Auto Filling And Cutting The End And Seal The End|
|Water Chiller:||No Need||Counting Tube Function:||Yes|
|CE:||Yes||Working Station:||9 Pcs|
|Machine Size:||1900×800×1600mm||Machine Weight:||1100kg|

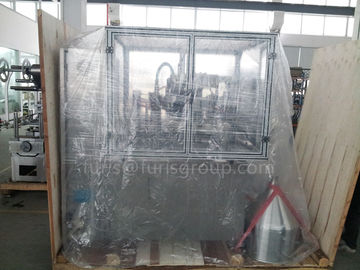

30-50 0.1M³ / Min Capacity Plastic Tube Filling Machine For Air Heating Sealing Tube
This machine is used for filling and sealing plastic/lamination alu tube auto.
1) Transmission parts enclosed in the platform below the safe, reliable, non-polluting; filling and sealing part of the installation within the platform above a semi-closed static-frame visual plexiglass cover, easy to observe, easy to operate, easy to maintain;
2) Main parts adopt import parts,PLC control system(Siemens),Color touch screen display(Siemens),
3) low electric applicator(Omron),Pneumatic parts(Airtac ,Taiwan),motor:(STS,Taiwan)
4) Automatically feeding tube into tube holder
5) The photoelectric target aiming working station employs accurate detector and marching type motor
,ensuring the tube design at the correct position.
6) Filling nozzle enters tube inside to fill.As it fills it will moves up and prevent material from over flowing
and spilling.Has auto cutting tube tail function when finishing fill the material into the tube
7) No tube no filling,Sealing temperature adopt (Leister hot air gun) inside heating for the tail of tube and
cooling device for out of tube
8) Automatically printing the character code on the tube bottom
9) Has overload protection
10) Has accounting and auto stop machine when reach the number
11) With Sensor to auto detect the printing mark on the tube,can auto adjust the tube position.
|Tube Material||Plastic tube, laminated tube|
|Tube Length||50-300mm (customizable)|
|Filling Volume||5-250ml/piece (Adjustable)|
|Product Capacity (Pcs/min)||30-50 0.1m3/min|
|Motor Power||4kw (380V/220V 50Hz)|
|Heat Sealing Power||5kw|
|Overall Dimension(mm)||1600*1640*1900mm (L*W*H)|
|Machine Weight (kg)||1100kg|
We can offer you capacity automatic tube filling and sealing machine
1. We have several technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Country:
USA (Distributor ),Italy distributor,Britishi(Distributor),India(Distributor)
We are mainly produce the pharma machine,pharma packing machine,and disposable non-woven take care product machine.Our product includes capsule filling machine,tablet press machine,powder mixing machine,powder grinding machine granule gratulator,tablet capsule counting machine,tube filling and sealing machineblister packing machine,cartoning machine,labeling machine,face mask machine,shoe cover machine,bouffant cap machine,body wamer pad machine,eye warmer pad machine,sheet bed machine,non-woven sheet folding machine,non-woven slitting machine,etc all kind of non-woven product machine.
