Stainless Steel Wet Powder Mixing Machine Professional 20L / Batch For Feed

China Stainless Steel Wet Powder Mixing Machine Professional 20L / Batch For Feed supplier
Stainless Steel Wet Powder Mixing Machine Professional 20L / Batch For Feed supplier Stainless Steel Wet Powder Mixing Machine Professional 20L / Batch For Feed supplier

Large Image :  Stainless Steel Wet Powder Mixing Machine Professional 20L / Batch For Feed

Product Details:

Place of Origin: CHINA
Brand Name: FRS
Certification: CE
Model Number: CH-30

Payment & Shipping Terms:

Minimum Order Quantity: 10 sets
Price: 2000-30000
Packaging Details: wooden case
Delivery Time: 20 days
Supply Ability: 10 sets one month
Contact Now
Detailed Product Description
Product Name: 20L/ Batch Dam Material Feed Groove Powder Mixer Machine For Wet Mixing Material: Stainless Steel
Barrel Volume: 30L Customize Loading Volume: 20L
Stpless Motor: Yes Warrantee: 1 Year
Delivery Time: 20days Machine Size: 1065*380*520 Mm
Machine Weight: 150kg

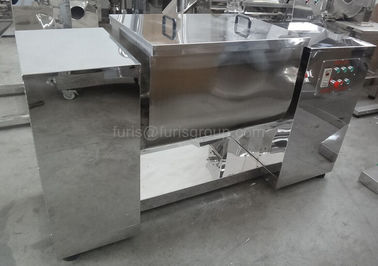

Stainless Steel Wet Powder Mixing Machine Professional 20L / Batch For Feed





Applying:





This machine is designed for thoroughly mixing powders or pastes. It is a horizontal through type mixer with single stirring arm. The stirring arm is removable so that it is easy to clean. The parts surfaces which may touch the mixing materials are made of stainless steel, so they are good corrosion-resitent. The mixing trough can automatically reverse for discharge.

As a stainless steel horizontal mixer, the machine is suitable for the mixing of target materials in powder or paste state evenly in pharmaceutical, chemical and foodstuff industries.





Features:





1. Strong and fast mixing: Strong and fast mixing can be achieved due to effective drive design and variable speed blending.
2. High-degree of homogeneity: When material is added at the rate of 0.1%, the homogeneity can reach 98% in short time.
3. Heating jacket: A heating jacket can be equipped as an option in the mixing tank shell for heating or drying process. The heating medium can be steam, hot water or hot oil. Design pressure is 0.3 Mpa.
4. Liquid spray nozzle: Spray nozzles can be equipped as an option to add liquid additives which can be evenly sprayed onto the mixture.
5. Well bearing sealing: shaft sealing is the combination of Teflon packing sealing and air-tight sealing to make sure long life-span.
6. Automatic discharging valve: The combined discharge valve is pneumatic planer flap valve. The flap plate can perfectly match the mixing tank inner wall to make sure no dead corner.





Parameter:







 Model

CH-30

CH-50

CH-100

CH-150

CH-200

CH-300

CH-400

CH-500

CH-600

Type of paddle

S Type of paddle

S Type of paddle

 S Type of paddle

S Type of paddle



SType of paddle





S Type of paddle





S Type of paddle





S Type of paddle





S Type of paddle



Working volume(L)

20

30

60

90

140

180

250

300

280

Mixing speed(rpm)

24

24

24

24

24

24

24

24

24

Turningangle(r)

<105

<105

<105

<105

<105

<105

<105

<105

<105

Agitation motor(kw)

0.75

1.5

2.2

3

4

5.5

7.5

11

15

 Discharging motor(kw)

0.12

0.55

0.55

0.75

0.75

1.1

1.5

1.5



 Overall dimensions (L×W×H)(mm)

1065×380
×520

1265×430
×720

1580×500
×830

1685×600
×1000

1850×600
×1000

2160×70
0×1200

2280×700
×1250

2450×700
×1250

2500×900
×1350



Weigh(kg)



150

200

300

650

720

750

780

820

850









We can offer you different capacity groove mixer
