High Speed Label Applicator Adhesive Horizontal Labeling Machine For Small Bottle

China High Speed Label Applicator Adhesive Horizontal Labeling Machine For Small Bottle supplier
High Speed Label Applicator Adhesive Horizontal Labeling Machine For Small Bottle supplier High Speed Label Applicator Adhesive Horizontal Labeling Machine For Small Bottle supplier High Speed Label Applicator Adhesive Horizontal Labeling Machine For Small Bottle supplier High Speed Label Applicator Adhesive Horizontal Labeling Machine For Small Bottle supplier

Large Image :  High Speed Label Applicator Adhesive Horizontal Labeling Machine For Small Bottle

Product Details:

Place of Origin: CHINA
Brand Name: FRS
Certification: CE
Model Number: FRS-WPMA

Payment & Shipping Terms:

Minimum Order Quantity: 10 sets
Price: 4000-7000
Packaging Details: wooden case
Delivery Time: 20 days
Supply Ability: 10 sets one month
Contact Now
Detailed Product Description
Product Name: Horizontal Labeling Machine For Small Bottle Material: Stainless Steel
Bottle Size: Customize Label Size: Customize
PLC: Yes Touch Screen: Yes
Warrantee: 1 Year Delivery Time: 20days
Machine Size: 1800 (L) *700 (W) *1270 (H) Mm Machine Weight: 300kg

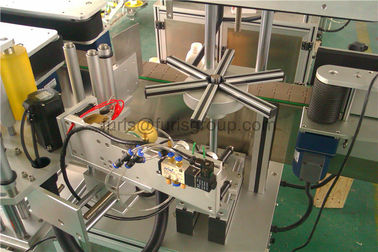

Horizontal Labeling Machine For Small Bottle





Applying:





FRS-WPMA adhesive labeling machine for small round bottle is our upgraded product, which is applicable labeling small size round bottles in food, medicine, daily chemical and other light industries





Features:





1. Imported servo motor, the speed of send label is fast;

2. Touch-screen man-machine interface Operating system, simple and efficiently;

3. Adopt mature technology PLC control system, operation is stable and high-speed;

4. Input type roll label device, make the label attached more solid;

5. The whole machine made of S304 stainless steel and anode handling superior aluminum. Never rust, high corrosion resistance;

6. No object not labeling, automatic alarming when without labels or no labeling

7. Can be operated alone or used on-line as well

8. With labeling function





Parameter:





Production 30-260 bottle/min (Step motor)
30-260 bottle/min (Servo motor)
Labeling speed ≤40m/min
Labeling specification Glassine paper, transparent and opaque
Printer to use air 5kg/cm²
The application of bottle Outer diameter 12-24mm Height 25-95mm
The application of label Height 20-70mm Length 25-80mm
The inner diameter of label plate Min. 76mm
The outer diameter of label plate Max. 350mm
Driving mode Servo or step motor
The power of motor 300w
Size appearance 2400×950×1600mm
Machine weight 300kg
Voltage AC 220V 50/60Hz Single phase (according to the voltage in client country)





We can offer you different function adhesive labeling machine





High Speed Label Applicator Adhesive Horizontal Labeling Machine For Small Bottle

High Speed Label Applicator Adhesive Horizontal Labeling Machine For Small Bottle





Competitive advantage:


1. We have several technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Country:
USA (Distributor ),Italy distributor,Britishi(Distributor),India(Distributor)





Comany info:





We are mainly produce the pharma machine,pharma packing machine,and disposable non-woven take care product machine.Our product includes capsule filling machine,tablet press machine,powder mixing machine,powder grinding machine,tablet capsule counting machine,blister packing machine,cartoning machine,labeling machine,face mask machine,shoe cover machine,bouffant cap machine,body wamer pad machine,eye warmer pad machine,sheet bed machine,non-woven sheet folding machine,non-woven slitting machine,etc all kind of non-woven product machine.
