Product Details:
|
| Product Name: | Improved Type Semi-auto Capsule Filling Machine | Material: | Stainless Steel |
|---|---|---|---|
| Function: | For Fill The Powder And Pallet Into The Hard Capsule | Powder: | 2.2kw |
| Voltage: | 220v Or 380v,3phase | Capsule Size: | 00-5# |
| Warranty: | 1year | Delivery Time: | If No Already Machine In Stock Need 20days |
| Packing Machine: | 1200*700*1600mm | Gross Weight: | 525kg |
| Packing Way: | Wooden Case | ||
| High Light: | automatic capsule filler,capsule filler machine |
||

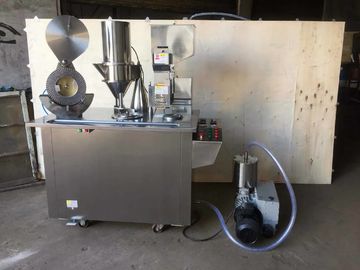

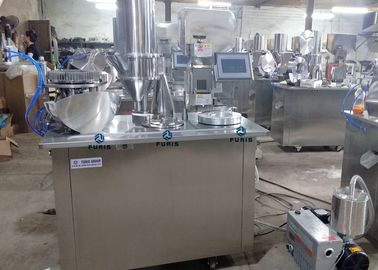

Semi Automatic Capsule Filling Machine High Precision For Powder Or Pallet
Applying:
This machine is used for filling the powder or pellet into the capsule,it is semi-automatic type with simple operation and high capactiy.
Futures:
1) Equipped with independent empty capsule feeding station, powder feeding station and capsule
closing station
2) Intermediate processing must be handled manually
3) Variable speed control
4) With touch screen PLC operation,the operation is simple the filling process is simple
5) Powder material feeding is accurate
6) Machine body and working table made of stainless steel
7) Meet the hygiene requirements of the pharmaceutical industry
8) Suitable for filling powder and granular materials in pharmaceutical and health food industries
9) The light-touch switches,feeding propeller and filling rotary table can be in
automatic run based on preset and frequency speed control.
10)Reducing the packing cost due to high application and run-on.
11)Without traditional gearbox,it is simple in structure and easy to make maintenance.
Parameters:
| Model: | DTJ-V |
| Capacity: | 20000capsules/h |
| Machine suitable for: | capsule Size #000 to 4 |
| Power supply: |
220v/380v 50Hz three phase (it can be changed depend on your requirement) |
| Power consume: | 2.2kw |
| Quantity of mould bores: | 12pcs |
| Noise standard: | ﹤60dB(A) |
| Weight: | 525kgs |
| Overall dimension: | 1200×700×1600mm |
We can offer you different capacity semi-auto capsule filling machine and full auto capsule
filling machine Capsule counting machine capsule packing line our machine mainly export
to USA
Competitive advantage:
1. We have several technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Country:
USA (Distributor ),Italy distributor,Britishi(Distributor),India(Distributor)
