Payment & Shipping Terms:
|Application:||For Fill Counting Tablet Pill Capsule Into The Empty Bottle||Product Speed:||40-120 Bottles/min|
|Material:||316L & 304 Stainless Steel||Capsule Size:||000-5 And Soft Capsule|
|Operation:||Touch Screen||Power Supply:||220V/380V/110v|
|Warranty:||12 Month||Main Market:||USA,West Europe|
Detailed Product Description

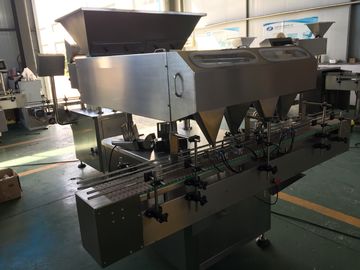

Automatic Photo Cell Electronic Capsule tablet pill machine with 32 channel sensor capsule tablet counter
FRS-32 Multi channel counting brating machine with vibrating function
Passed CE Certification and ISO up to GMP Standard
Newly developed software controlling system suitable for different batch of production
It needs no changing parts while switch product size.
FRS-32 Automatic Eletronic counting machine is special for counting tablets,soft gelation,hard capsules and chewing gums etc.This machine adopts 32 sets imported counting sensor for counting with 32 Guiding Way and four heads .The advantage of the machine is no need change mould when you change the counting object. Only adjusting the counting table height by easy adjust .The machine comes with touch screen operation for convenient running.
Wide application and use of the Company's original anti-dust photoelectric detection of high technology ,can count tablets(including special-shaped tablets), capsules,soft capsules (transparent,opaque),pill count to bottling.
Soft Gelatin capsule
other solid object under machine range
|Compressed Air||0.6 Mpa|
|Conveyor Belt Length||2160mm|
1. Compatibility ,high accuacy ,wide application and use of the Compan's original anti-dust photoelectric detection of high technology ,can count tablets (including special-shaped tablets),capsules,soft capsules,(transparent,opaque),pill count to bottling.
2.Vibratory cutting drugs do not damage
3.A high degree of intelligence,with no bottles is no bottle is not the number of self-fault dection alarm and many other control functions.
4.Compact structures ,stability and gurability ,and no regular replacement parts,small footprint,the use of low-cost
5.To facilitate the replacement of species, can automatically take-off and landing ,demotion cleared without any tools,convenient and quick.
6.English -Chinese dialogue control panel ,can store 10 -20 group of species parameters ,adjusted to facilitate the use of special
6. Fully automatic operation ,with the Upper and Lower Union Road ,intelligent control of processes,coordination,and no special operation ,labor-saving devices.
7.Low prices,especially for small volume ,variety and more manufactures use
8. Control chip imported from the United States,photoeletric sensor for Taiwan's imported.
